Ø6×30mm FAST-ACTING GLASS TUBE FUSE
MGC系列保險絲規(guī)格書
1.適用范圍:  本規(guī)格書所述電氣和機械要求適用于小型玻璃管熔斷體, 采用的標準為IEC-127和與之等效的GB-   9364標準。
2.產(chǎn)品特性: MGC— 快熔斷型(Fast Acting)

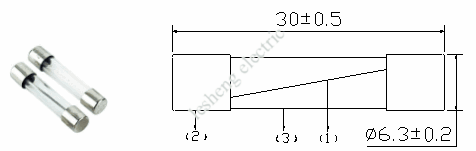

3.外形尺寸:如圖
4.結構STRUCTURE:
(1) WIRE: ALLOY
(2) CAP: BRASS WITH NICKEL PLATED
(3) BODY: GLASS TUBE
5.結合強度：銅帽與玻璃管之間的結合應能承受0.5Kg的軸向拉力。
6.熔化熱能值和損耗功率:

額定電流	分斷電流	額定電壓(AC)
32 mA	35A	125V/250V
50 mA	35A	125V/250V
100 mA	35A	125V/250V
125 mA	35A	125V/250V
160 mA	35A	125V/250V
200 mA	35A	125V/250V
250 mA	35A	125V/250V
315 mA	35A	125V/250V
400 mA	35A	125V/250V
500 mA	35A	125V/250V
630 mA	35A	125V/250V
800 mA	35A	125V/250V
1.0 A	35A	125V/250V
1.25 A	100A	125V/250V
2.0 A	100A	125V/250V
2.5 A	100A	125V/250V
3.15 A	100A	125V/250V
4.0 A	200A	125V/250V
5.0 A	200A	125V/250V
6.0 A	200A	125V/250V
7.0 A	200A	125V/250V
8.0 A	200A	125V/250V
10 A	200A	125V/250V
15 A	200A	125V/250V

7.熔斷特性:

% of Rating	135%	200%
100mA–10A	Max.1 hour	Max.5 Sec.

8.耐久性試驗： 1、通以1.2倍交流額定電流1小時, 然后切斷15分鐘, 將該循環(huán)重復100次, 通以1.5倍交流額定電流1小時;2、電壓降增大量不大于試驗前測得值的10%.
9.溫度特性TEMPERATURE CHARACTER:
  When 100% of rating the temperature rise doesn’t exceed 75℃
Safety Approvals:(安全認證):
