IEC規格5×20mm,FAST-ACTING GLASS TUBE FUSE
Ø5×20mm（FSD系列）保險絲規格書

1.適用范圍:  本規格書所述電氣和機械要求適用于小型玻璃管熔斷體, 采用的標準為IEC-127和與之等效的GB-   9364標準。
2.產品特性:  FSD — 快熔斷型(Fast Acting) ;額定電壓Voltage:250V ;
             額定電流Rated current:200mA-6.3A

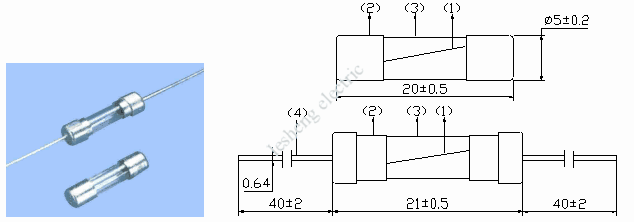

3.外形尺寸:如圖
4.結構STRUCTURE:
(1) WIRE: ALLOY
(2) CAP: BRASS WITH NICKEL PLATED
(3) BODY: GLASS TUBE
(4) LEAD: TINNED COPPER WIRE
5.結合強度： 銅帽與玻璃管之間的結合應能承受0.5Kg的軸向拉力。
6.分斷電流BREAKING CAPACITY:35A or 10 In whichever is greater,tested with AC for the Low breaking capacity test.
7.熔斷特性:

IN	2.1N	2.75N		4N		10N
32mA–100mA	Max.30min.	Min.10mS	Max.500mS	Min.3mS	Max.100mS	Max.20mS
125mA–6.3A	Max.30min.	Min.50mS	Max.2S	Min.10mS	Max.300mS	Max.20mS

8.耐久性試驗： 1、通以1.2倍交流額定電流1小時, 然后切斷15分鐘, 將該循環重復100次, 通以1.5倍交流額定電流1小時;2、電壓降增大量不大于試驗前測得值的10%.
9.Safety Approvals:(安全認證):
10.包裝:  500支塑袋裝；1000支紙盒裝；10000支紙箱裝；按客戶要求特殊包裝.
