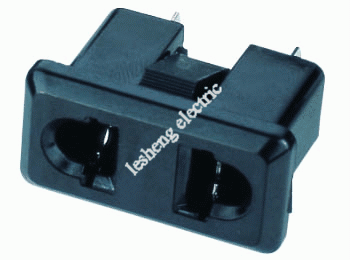

2-pole Socket
SS-6D1
- Times：2018-01-02 08:09:38
- SS-6D1
-
Specifications:
1. 主體材料Body Material: Black Glass-Fiber Nylon 66.94V0
2. 電氣參數(shù)Operating data: 15A, AC250V/AC250V
3. 接觸電阻Contact Resistance:< 5mΩ
4. 絕緣電阻Insulation resistance: >100 MΩ/500Vdc
5. 耐壓Dielectric strength: 2000 VAC/1 minute
6. 用于裝配板:裝配板厚度0.8-2.5mm
7. 標(biāo)準(zhǔn):IEC320 C8
8. Safety Approvals(安全認(rèn)證):
